Innovative Application of Intelligent Temperature Control System in Textile Industry: Automatic Heating Control Box Enhances Fabric Drying Efficiency and Safety
author: JENNIE
2025-10-22
Industry Background
In the textile manufacturing process, temperature control during the fabric drying stage directly impacts product quality and production efficiency. Traditional drying equipment often suffers from insufficient temperature control accuracy and inadequate safety protection measures, leading to energy waste and production safety hazards. Recently, an automatic heating control box specifically designed for fabric drying equipment has demonstrated remarkable results in practical applications, providing reliable temperature control solutions for the textile industry.
Technical Principle and Innovation
This automatic heating control box employs a dual-path temperature monitoring system to measure both outlet air temperature and internal chamber temperature in real-time. The outlet air temperature serves as the primary control parameter for fabric drying, ensuring optimal drying effectiveness, while the internal chamber temperature functions as a safety monitoring indicator, effectively preventing accidents caused by equipment malfunctions. This dual temperature monitoring mechanism addresses the dangerous situation that may occur in traditional drying equipment where internal chamber temperature becomes excessively high while outlet air temperature remains low during blower failures.
Core Features

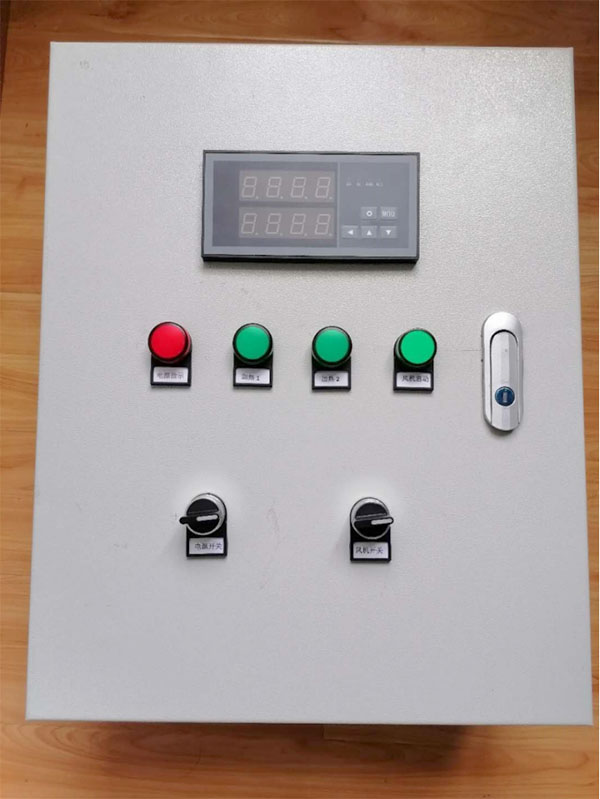

The equipment is equipped with an advanced temperature control instrument that supports precise temperature setting and automatic adjustment. When the internal chamber temperature exceeds the preset safety threshold, the system immediately cuts off the heating power to ensure equipment safety. The control box panel features an independent blower switch for convenient operator control. Its 380VAC five-wire power supply design and 3KW heating output power fully meet the power requirements of industrial-grade fabric drying equipment.
Practical Application Case
A textile enterprise in Zhejiang introduced this automatic heating control box in August 2023, installing it on their new fabric drying production line. During operation, the equipment demonstrated exceptional performance. According to production data, when processing polyester fabric, the outlet air temperature remained stable within the set range of 85±2°C, while the internal chamber temperature always stayed below the safety threshold of 120°C. During one production instance, when the blower suddenly stopped due to a circuit failure, the control system detected an abnormal temperature rise to 125°C in the internal chamber within 3 seconds and immediately cut off the heating power, successfully preventing a potential equipment accident.
Performance Parameters
The control box demonstrates strong environmental adaptability, operating stably in temperature ranges from -20°C to 60°C and relative humidity conditions of 5%-90%. The 400×500×140mm iron plate spray-painted enclosure ensures equipment durability and protection. Its two 4-20mA input signals correspond to outlet air and internal chamber temperature monitoring respectively, while one heating output and one fan output achieve precise power control.
Economic Benefit Analysis
According to the textile enterprise manager, since implementing the automatic heating control box, product drying qualification rate has improved from 92% to 98%, energy consumption has reduced by 15%, and equipment maintenance costs have decreased by 20%. More importantly, the system's safety protection function has helped the enterprise avoid potential production interruptions and property losses caused by equipment failures.
Industry Impact and Prospects
The successful application of this automatic heating control box demonstrates the significant value of intelligent temperature control systems in the transformation and upgrading of traditional textile industry. Its precise temperature control and reliable safety protection mechanisms establish new technical standards for fabric drying processes. As the textile industry's demand for production automation and intelligence continues to grow, such intelligent control equipment is expected to gain wider application within the industry.
Technical Development Outlook
Industry experts believe that this safety control solution based on dual-path temperature monitoring is not only applicable to the textile industry but can also be promoted to other industrial fields requiring precise temperature control. Its modular design and reliable performance provide new ideas for the development of industrial temperature control equipment. In the future, with the integration of IoT technology, such equipment will also enable more advanced functions like remote monitoring and intelligent early warning.
Conclusion
The successful application of the automatic heating control box in the fabric drying field fully demonstrates the important value of intelligent transformation in upgrading traditional industries. Through precise temperature control and multiple safety protections, this equipment not only improves product quality and production efficiency but also provides reliable guarantees for enterprise safety production, making positive contributions to the technological upgrading and sustainable development of the textile industry.
